In animal experiments, it is often necessary to perform microinjection on animals. An automatic microinjection pump is used, which is convenient to use. The syringe of the injector is installed on the injection pump and connected to the gripper through a conduit. The precise movement of the injector piston is controlled by a microcomputer to drive the unit, achieving injection or recovery of liquids in experimental animals and leaving more operating space for the experiment.

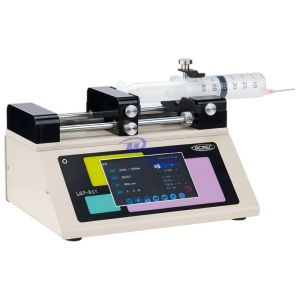

M5263 ultra precision microinjection pump, high-definition touch screen operation, Ditronstep micro step control system, used for precise control and delivery of trace liquid drugs or solutions. It is usually used in conjunction with brain locators or microcontrollers in the medical field, especially in clinical medicine, laboratory research, and drug development. This injection pump is compatible with most imported and domestic microinjectors (0.5ul-100ml), with a stroke resolution of 0.012 μ m/μ step, a linear velocity range of 0.015 μ m/min to 30.77mm/min (flow rate=linear velocity x syringe loading area), and a propulsion distance of 150mm.

1. Working mode: infusion, extraction, infusion/extraction, extraction/infusion, continuous, multiple infusion
2. Touch display: 5-inch high-definition touch screen, simple, clear, easy to understand, and controllable
3. Language types: Chinese and English, 2 languages to choose from
4. Online speed regulation: adjust the current flow rate without stopping the machine during operation
5. Calibration function: Supports syringe calibration and stores calibration parameters
6. Syringe selection: Built in from major domestic and foreign manufacturers, with a choice of main models of syringes and support for customization
7. Parameter settings: Liquid volume, flow rate, infusion time, extraction time, interval time, and infusion frequency can be set and stored
8. Power on operation: Store the current dynamic operating parameters when powered off, and resume operation after powering on again
9. Reminder function: Real time display of available Max/Min flow rate; Dynamically display operating parameters
10. Reminder function: Run to the set target liquid volume, sound alarm prompt
11. Thrust setting: Suitable thrust can be set according to the specifications of each injector
12. External control function: external level or pulse signal to achieve start stop control
13. Communication control: RS485/USB optional, touch settings for address and baud rate
14. Status output: start stop, direction status output

1. Number of channels: single channel
2. Working mode: infusion, extraction, infusion/extraction, extraction/infusion, continuous, multiple infusion
3. Maximum travel: 150mm
4. Accuracy:<1%
5. Repetitive accuracy: Error ≤ ± 0.05%
6. Sample injector specifications: 0.5 μ L to 100mL
7. Linear thrust: ≥ 160N
8. Linear speed range: 0.015 μ m/min to 30.77mm/min
9.Step resolution: 0.012 μ m/μ step
10. Applicable power supply: AC 100V~240V 50/60Hz 30W
11. Working environment: Temperature: 0-40 ℃ Humidity: Humidity 20% -80% RH No condensation
12. Storage environment: Temperature: -10~60 ℃ Humidity: Humidity: 20% -80% RH No condensation
13. Protection level: IP31
14. Product size (mm): 256 * 190 * 146 (mm)
